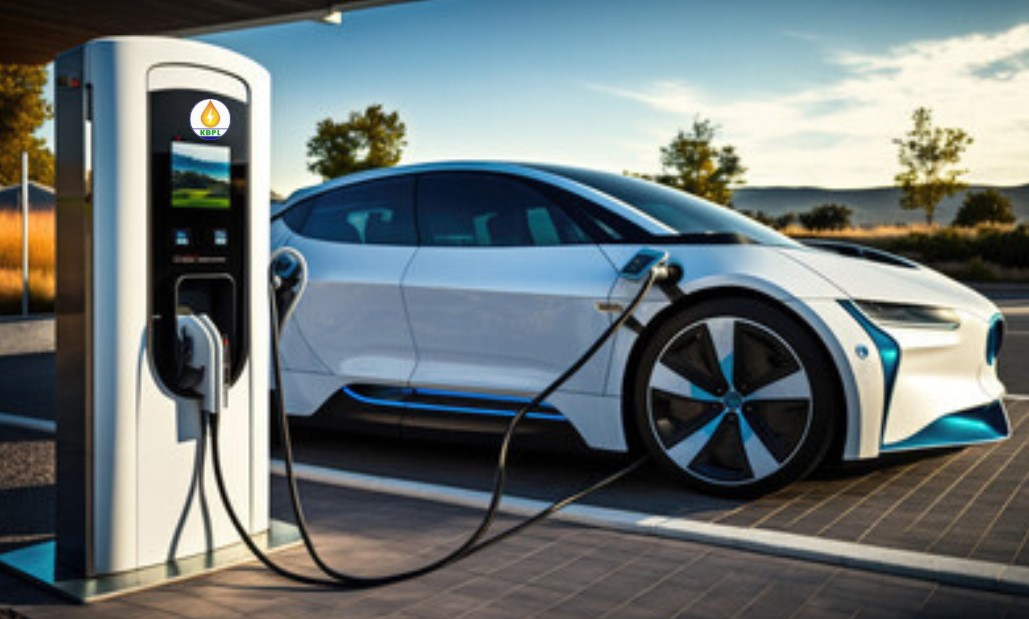

EV CHARGING STATION
/// 20 KW DC Fast Charger with single gun ///
“Are you looking for Safer & Faster EV Charging
Solutions for Your EV Vehicles.
”
No Issues for Battery Life & Protect Your Battery
PRODUCT SPECIFICATION
USER INTERFACE
- DISPLAY : 7 INCH
- EMERGENCY BUTTON : YES
- SUPPORT LANGUAGE : ENGLISH (OTHER ARE ON REQUEST)
- USER AUTHENTICATION : RFID/MOBILE APP
- EXTERNAL CONNECTION : LAN/WI-FI/GSM INTERNET
INPUT POWER
- POWER : 20KW
- CURRENT RATING : 30A
- INPUT CABLE : 3.5C, 16SQMM, AL, XLPE,
- EARTH-1C, 6SQMM, Al
- INCOMING RATING : 3P, 63A, MCCB
- NOMINAL VOLTAGE : 415V, 3ØAC±10%
- FREQUENCY : 50HZ
- POWER FACTOR : 0.99
- CURRENT THD : ≤5%
- EFFICIENCY : ≥95%
OUTPUT POWER
- OUTPUT VOLTAGE : 300-750V DC, 200-1000V (OPTIONAL)
- CURRENT : 40A @500V
- NOMINAL POWER : 20KW (CONSTANT POWER)
- COMMUNICATION PROTOCOL : ISO 15118,DIN 70121
- COMPLIANCE : IEC61851-1/23/24/
COMMUNICATION
- CHARGER & CMS : OCPP1.6
- CHARGER TO VEHICLE : AS PER CCS PROTOCOL
ENVIRONMENT
- AMBIENT TEMP. : - 10°C TO 55°C (DEGREE ABOVE 55°C)
- STORAGE TEMP. : - 20°C TO 75°C
- ALTITUDE : <2000 MTR
- HUMIDITY : <95° NON - CONDENSING
MECHANICAL
- IP PROTECTION : IP 54
- COOLING METHOD : FAN
- CABLE LENGTH : 5MTR
- DIMENSION (WXHXD) : 550X1700X350
- INSTALL METHOD : STAND ALONE
PROTECTIONS
- OVER VOLTAGE, UNDER VOLTAGE, SHORT CIRCUIT, LEAKAGE CURRENT, OVER TEMPERATURE, OVER CURRENT.
